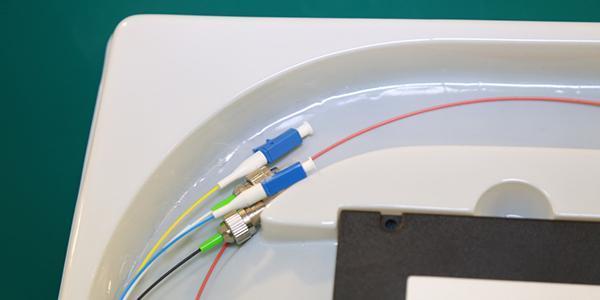

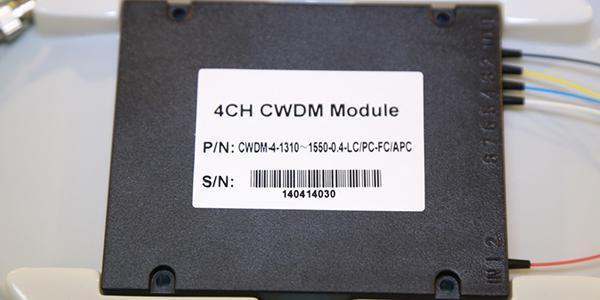

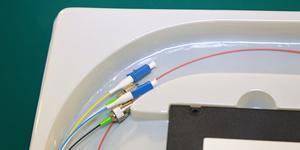

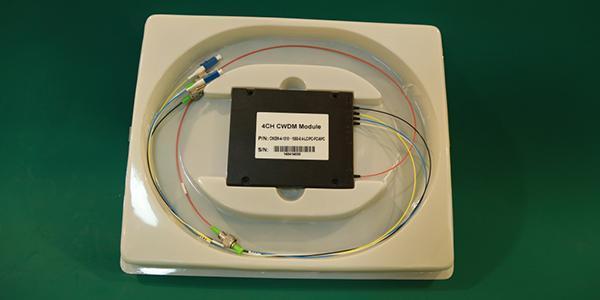

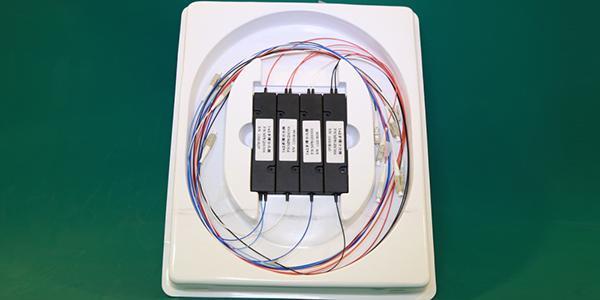

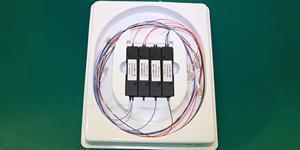

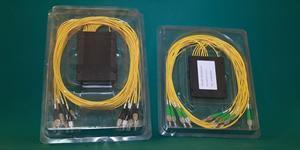

WDM Wave Division Multiplexer Module

  • WDM Wave Division Multiplexer Module
  • WDM Wave Division Multiplexer Module
  • WDM Wave Division Multiplexer Module
  • WDM Wave Division Multiplexer Module

Applications
1. Coarse wavelength division multiplexing system
2. CATV system
3. Telecommunication network system
4. Access network

Parameters
Parameter Value
Channels Number 2 4 8 16 32 40
Channel Central Wavelength(nm) ITU-T Grid
Passband@0.5dB(nm) ≥0.3
Pass band(nm) λITU±0.11
Pass band Flatness(dB) ≤0.5
Insertion Loss (Typ.) (dB) 1.2 2 4.2 9 16.8 20.5
Insertion Loss (Max.) (dB) 1.4 2.6 5 9.8 19.4 24.2
Adjacent Channel Isolation(dB) ≥25
Non-adjacent Channel Isolation(dB) ≥40
Return Loss(dB) ≥50
Polarization Film Dispersion(pS) ≤0.10 ≤0.10 ≤0.10 ≤0.15 ≤0.15 ≤0.15
Polarization Dependent Loss(dB) ≤0.10 ≤0.15 ≤0.20 ≤0.25 ≤0.30 ≤0.30
Directivity(dB) ≥50
Working Temperature(°C) -5~+70
Storage Temperature(°C) -40~+85
Packaging size mm) ABS box G: 100X80X10, H: 125X96X16
I: 141X115X18, O: customized

Features
1. Based on thin film filtering technology and high wavelength stability
2. Low polarization loss and high channel isolation
3. Smooth channel
4. Optional sizes and ports
5. Epoxy resin free optical path, good reliability
6. Compliance with Telcordia GR-1221 and RoHS standards

Xinhaixun offers customers a variety of fiber optic passive components, a specialized WDM wave division multiplexer module manufacturer and supplier, we are offering a wide range of fiber beam splitters, optical patch cable, optical adapter, optical coupler, MPO connector. Use quality manufacturing and testing equipment, we provide quality optical fiber module for fiber optic communication and networking applications.
