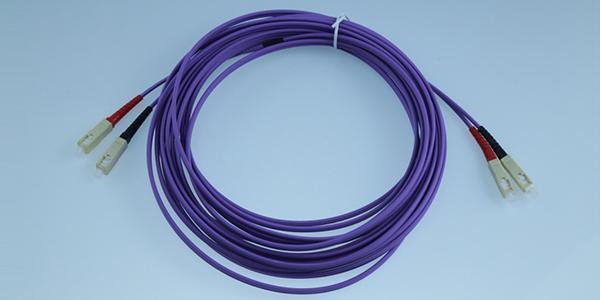

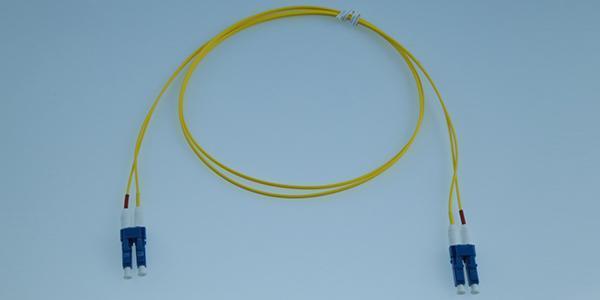

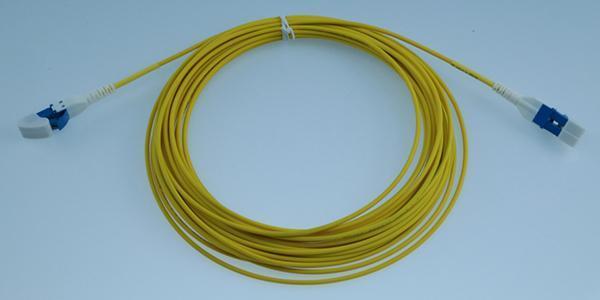

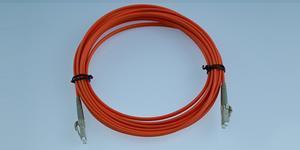

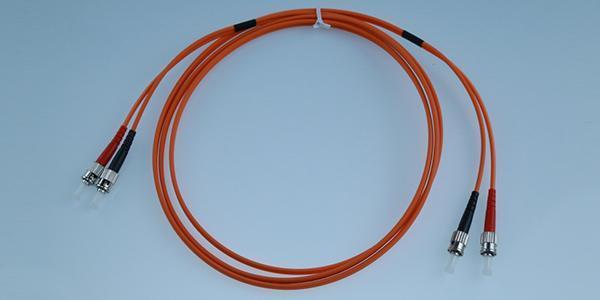

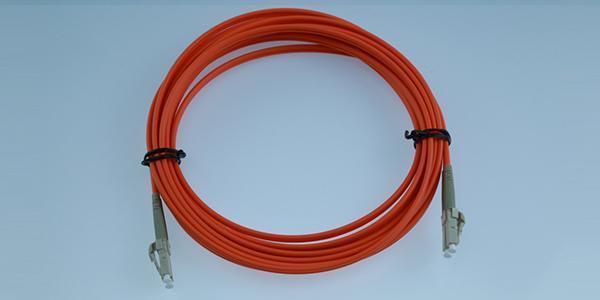

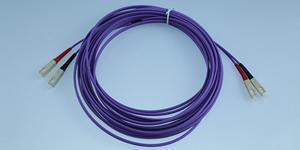

The fiber optic patch cords and patch cables can be divided into FC, SC, LC, MU, ST and other types. using high quality ceramic ferrules, our patch cords and patch cables feature an outstanding consistency and a low insertion loss, making them ideal for use in telecommunication network, data transmission, testing equipment, CATV, LAN and so on.
1. Optical fiber communication system
2. Optical fiber access network
3. Optical fiber CATV
4. Optical fiber testing equipment
5. Optical fiber data communication
|Diameter of fiber core (um)||9/125|
|Cable diameter (mm)||φ0.9, φ2.0, φ3.0|
|End face type||PC||UPC||APC|
|Insertion loss (dB)||＜0.3||＜0.3||＜0.3|
|Return loss (dB)||＞45||＞50||＞60|
|Insert and draw frequency (times)||≥500|
|Working temperature (℃)||-40~80|
1. Low insertion loss and high return loss
2. Good repeatability and interchangeability
3. Suitable for high speed and high capacity optical fiber transmission system.
4. Provision of single mode and multimode fiber patch cables and patch cords, and tail fibers
5. The diameter of optical fiber cable: 0.9mm, 2.0mm, 3.0mm
6. Length or type: according to customer requirements
Xinhaixun offers customers a variety of fiber optic passive components, a specialized single fiber patch cord and patch cable manufacturer and supplier, we are offering a wide range of fiber beam splitters, optical adapter, optical coupler, WDM, MPO connector. Use quality manufacturing and testing equipment, we provide quality single mode optical fiber cable for fiber optic communication and networking applications.
