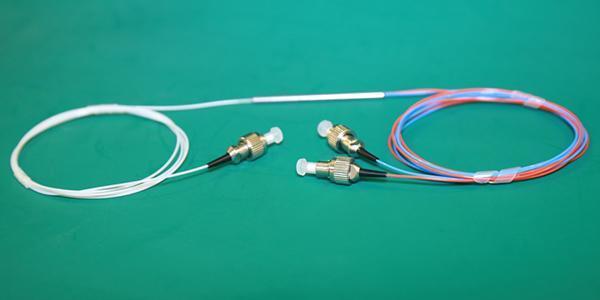

1x2 Fiber Optic Coupler

1x2 Fiber Optic Coupler

Applications
1. Long distance telecommunication company
2. CAtv system
3. Fiber optic sensor
4. LAN (local area network)

Parameters
Type 1x2
Central wavelength (nm) 1310, 1550 1064
Central wavelength range (nm) ±40 ±20
Additional loss (dB) 0.7 0.8
Uniformity (50/50) (dB) 0.4 0.5
Maximum insertion loss (23℃) (dB) 0.55 0.65
Coupling ratio (dB) 01/99~50/50
Minimum extinction ratio (dB) B type 20 20
F type 22 22
Minimum return loss (dB) 50
Maximum optical power (CW) (mW) 300
Tension strength (N) 5
Working temperature (℃) -5~+70
Storage temperature (℃) -40~+85

Features
1. We offer three optical fiber modes: single mode, multimode 62.5 and multimode 50.
2. Made of 900µm loose tube fiber or 250µm bare fiber
3. Any combination of fiber optic connectors can be used, such as LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST
4. Beam splitting ratio: 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 1/99, 60/40, 70/30, 80/20, 90/10, 95/5, 99/1

Xinhaixun offers customers a variety of fiber optic passive components, a specialized 1x2 fiber optic coupler manufacturer and supplier, we are offering a wide range of fiber beam splitters, optical patch cable, optical adapter, WDM, MPO connector. Use quality manufacturing and testing equipment, we provide quality optical fiber coupler component for fiber optic communication and networking applications.
