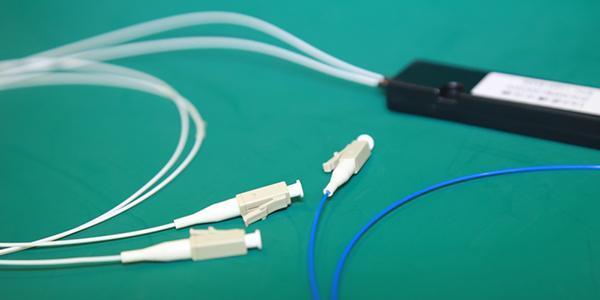

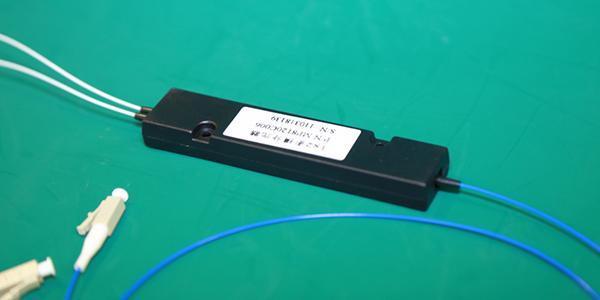

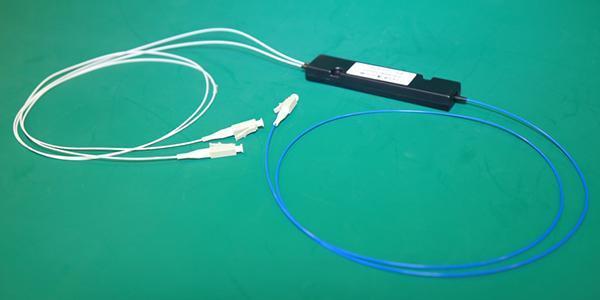

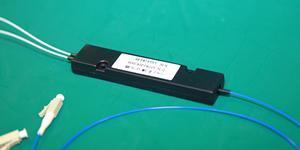

2x2 Fiber Optic Coupler

  • 2x2 Fiber Optic Coupler
  • 2x2 Fiber Optic Coupler
  • 2x2 Fiber Optic Coupler

Applications
1. Long distance telecommunication company
2. CAtv system
3. Fiber optic sensor
4. LAN (local area network)

Parameters
Type 2x2
Central wavelength (nm) 1310, 1550 1064
Central wavelength range (nm) ±40 ±20
Additional loss (dB) 1.0 1.2
Uniformity (50/50) (dB) 0.6 0.8
Maximum insertion loss (23℃) (dB) 0.65 0.8
Coupling ratio (dB) 01/99~50/50
Minimum extinction ratio (dB) B type 18 18
F type 22 22
Minimum return loss (dB) 50
Maximum optical power (CW) (mW) 300
Tension strength (N) 5
Working temperature (℃) -5~+70
Storage temperature (℃) -40~+85

Features
1. Three fiber modes: single mode, multimode 62.5 and multimode 50
2. Material: 900µm loose tube fiber or 250µm bare fiber
3. Any combination of fiber optic connectors is available, including LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST
4. Beam splitting ratio: 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 1/99, 60/40, 70/30, 80/20, 90/10, 95/5, 99/1

Xinhaixun offers customers a variety of fiber optic passive components, a specialized 2x2 fiber optic coupler manufacturer and supplier, we are offering a wide range of fiber beam splitters, optical patch cable, optical adapter, WDM, MPO connector. Use quality manufacturing and testing equipment, we provide quality optical fiber coupler component for fiber optic communication and networking applications.
