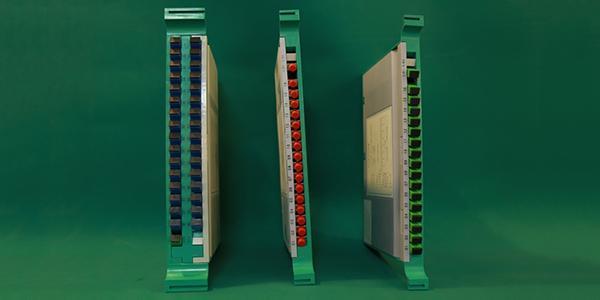

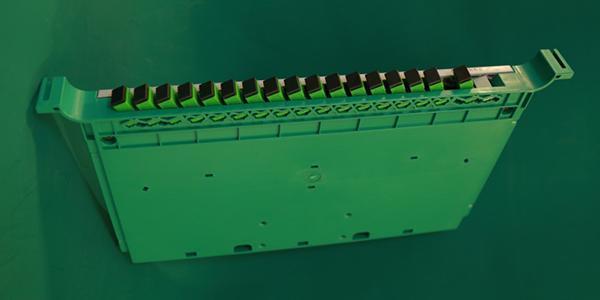

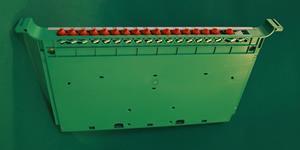

Tray type Fiber Optic Beam Splitter

  • Tray type Fiber Optic Beam Splitter
  • Tray type Fiber Optic Beam Splitter
  • Tray type Fiber Optic Beam Splitter

Description
The tray type fiber optic beam splitter is primarily used in CATV systems and passive optical networks (PON) in order to provide beam splitting channels in small sizes and high densities, full band (1260~1650nm) uniform optical signal distribution and non-uniform optical signal distribution within some central wavelengths. This product achieves various beam splitting channels from 1 divided into 2, all the way from 1 divided into 128.

Applications
1. LAN (local area network), WAN (wide area network) and metropolitan area network
2. Preliminary deployment of the fiber to the home project
3. CATV system
4. Gigabit passive optical network (GPON), Ethernet passive optical network (EPON)
5. Optical fiber testing equipment
6. Database transmission broadband network

Optical performance specifications of PLC splitters
Specification 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Fiber model G657.A
Working bandwidth 1260~1650nm
Insertion loss (dB) PLC device ≤3.8 ≤7.2 ≤10.5 ≤13.5 ≤16.8 ≤20.5 ≤23.5
Plug type PLC component ≤4.1 ≤7.4 ≤10.7 ≤13.8 ≤17.1 ≤20.8 ≤23.8
Adapter type PLC component ≤4.2 ≤7.6 ≤10.9 ≤14.0 ≤17.3 ≤21.0 ≤24.0
Polarization dependent loss (dB) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.5
Channel uniformity (dB) Fixed working wavelength ≤0.6 ≤0.7 ≤1.0 ≤1.2 ≤1.5 ≤2.0 ≤2.5
Full working bandwidth ≤1.1 ≤1.2 ≤1.5 ≤1.7 ≤2 ≤2.5 ≤3
Return loss (dB) PLC device ≥55
PLC component ≥45(PC), ≥50(UPC) , ≥55(APC)
Directivity (dB) ≥55
Working temperature (℃) -40~85
Specification 2×2 2×4 2×8 2×16 2×32 2×64 2×128
Fiber model G657.A
Working bandwidth 1260~1650nm
Insertion loss (dB) PLC device ≤4 ≤7.5 ≤10.7 ≤13.8 ≤17.1 ≤20.8 ≤23.8
Plug type PLC component ≤4.4 ≤7.7 ≤10.9 ≤14.1 ≤17.4 ≤21.1 ≤24.1
Adapter type PLC component ≤4.6 ≤7.9 ≤11.1 ≤14.3 ≤17.6 ≤21.3 ≤24.3
Polarization dependent loss (dB) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Channel uniformity (dB) Fixed working wavelength ≤0.6 ≤0.7 ≤1.0 ≤1.2 ≤1.5 ≤2.0 ≤2.5
Full working bandwidth ≤1.1 ≤1.2 ≤1.5 ≤1.7 ≤2 ≤2.5 ≤3
Return loss (dB) PLC device ≥55
PLC component ≥45(PC), ≥50(UPC) , ≥55(APC)
Directivity (dB) ≥55
Working temperature (℃) -40~85
Size parameters of the ABS box
PLC model 1/2*16 1/2*32 1/2*64
L*W*H (mm) 345*195*25 345*195*50 345*195*502 PCS assembly

Functional characteristics
1. Low insertion loss, low polarization correlation loss, and high reliability
2. High return loss and good repeatability.
3. Wide range of wavelength
4. The tray type fiber optic beam splitter is excellent in the overall uniform performance.

Xinhaixun offers customers a variety of fiber optic passive components, a specialized tray type fiber optic beam splitter manufacturer and supplier, we are offering a wide range of fiber beam splitters, optical patch cable, optical adapter, optical coupler, WDM, MPO connector. Use quality manufacturing and testing equipment, we provide quality optical fiber splitter component for fiber optic communication and networking applications.
